API 8C Drill Pipe Center Latch Elevators for Drilling
Product Descrption

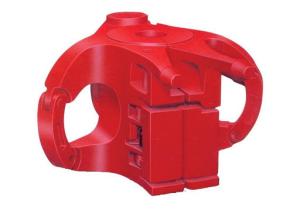

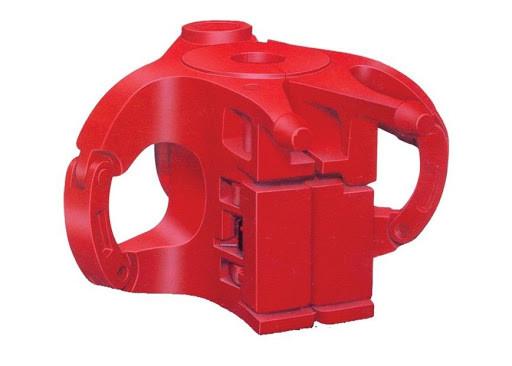

Elevator is a hinged mechanism that may be closed around drill pipe or other drill string components to facilitate lowering them into the wellbore or lifting them out of the wellbore. In the closed position, the elevator arms are latched together to form a load-bearing ring around the component. A shoulder or taper on the component to be lifted is larger in size than the inside diameter of the closed elevator. In the open position, the device splits roughly into two halves and may be swung away from the drill string component.
The TA Style Elevators are for use on tubing, casing and drill collars. The elevators are balanced for easy handling with safety lock and latch and guarded operating handles. Sizes range from 35 tons to 150 tons and cover all size tubular up to 11-1/4".
Our Services
1. TA elevator strictly according to API 8A and 8C standard.
2. If you found to quality problems within one month of the package returned.
3. All strictly according to the contract and fulfill the obligations and responsibilities
4. 24 hours online customer service,feel free contact us
Technical Information of Our TA Type Elevator
| Model | Size(in) | Rate Cap. (Short Tons) |
| DC | Tubing | Casing |
| NU | EU |
| TA-35 | 2 7/8-3 1/8 | 1.05-2 7/8 | 1.05-2 7/8 | / | 35 |
| TA-65 | 2 7/8-3 1/8 | 1.66-2 7/8 | 1.66-2 7/8 | / | 65 |
| TA-100 | 3 7/8-5 1/4 | 2 3/8-5 | 2 3/8-5 | / | 100 |
| TA-150 | 4 1/8-11 1/4 | / | / | 4 1/2-10 3/4 | 150 |
| Type | Pipe O.D. | Max.Dia.Weldless Links | Max.Load |
| In | mm | mm | In | kN(Tons) |
| CD | 2 3/8-2 7/8 | 60.3-73.0 | 69.85 | 2 3/4 | 100(900) 150(1350) 200(1800) 250(2250) 350(3150) |
| 3 1/2-4 | 88.9-101.6 | 69.85 | 2 3/4 |
| 4 1/25 1/2 | 114.3-127-139.7 | 69.85 | 2 3/4 |
| 6 5/8-8 5/8 | 168.3-219.1 | 88.9 | 3 1/2 |
| 9 5/8-10 3/4 | 244.5-39.7 | 88.9 | 3 1/2 |
| 11 3/4-13 3/8 | 298.5-339.7 | 88.9 | 3 1/2 |
| 14-16 | 355.6-406.4 | 88.9 | 3 1/2 |
| 18 5/8-20 | 473.1-508 | 88.9 | 3 1/2 |
| 22-30 | 558.8-762.0 | 88.9 | 3 1/2 |
| CDZ | Model | Drill Pipe Soze and Style | Elevator Bores | Elevator Sign | Max.LoadkN(Tons) |
| DDZ67 | 2 3/8EU | 67 | 2 3/8EU | 150(1350) 250(2250) 350(3150) |
| DDZ83 | 2 7/8EU | 83 | 2 7/8EU |
| DDZ101 | 3 1/2EU | 101 | 3 1/2EU |
| DDZ109 | 4IU | 109 | 4IU |
| DDZ121 | 4 EU | 121 | 4 EU |
| 4 1/2IU | 4 1/2IU |
| 4 1/2IEU | 4 1/2IEU |
| DDZ133 | 4 1/2IU | 133 | 4 1/2IU |
| 5IEU | 5IEU |
| DDZ148 | 5 1/2IEU | 148 | 5 1/2IEU |
Xi'an TianRui Petroleum Machinery Equipment Company is a professional manufacturer of cementing tools and other petroleum equipment in China. We have the certificatesof API-5CT, API-10D, API-11E, API-6A, API-11AX, API 5D,ISO9001:2008, ISO14001:2004 etc. We are the first-class supplier of resources market of SINOPEC and CNPC. Our products include cement tools, drilling tools, OCTG pipes, Mining equipment and other petroleum equipment. They are exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia , African , Australia,Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-calss products, first-class service and reasonable prices.
Our customers come from all over the world, mainly including the U.S., Canada, Republic of Korea, Philippines, Russia, Australia, Germany, India, Yemen, Egypt and so on. If you are interested in our products or any question, please feel free to contact us and look forward to cooperating with you.
