Plunger Type Carbon Steel Subsurface Sucker Rod Pump

  • 1
  • 2
  • 3

Brand Name : TR Solids Control

Model Number : TRCB

Certification : API 11AX, ISO Certificate

Place of Origin : Xi'an China

MOQ : 1 pc

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 50000 pcs per month

Delivery Time : Within 10 days after deposit

Packaging Details : Pallet or wooden case

Diameter : 28mm, 32mm,38mm,44mm,57mm

Connecting Rod : CYG19.1

Processing Type : Forging

Material : Carbon Steel

Tolerance : 0.01mm

Package : Pallet or wooden case

Contact Now

API Spec 11AX Subsurface Sucker Rod Pump Plunger Type

Product Descrption


The plunger surface of the rod pump is spray-welded nickel-based alloy, the inner bore of the pump barrel is nickel-plated phosphorus or carbonitriding, valve ball, Balls and other key parts are made of special corrosion-resistant materials, and are subjected to strict heat treatment and precision mechanical processing.


The subsurface sucker rod pump is an important equipment of rod extracting system that extracts the fluid in the oilwell powered by pumping units and sucker rod, which is also referred to as insert pump as its plunger is attached to, moves up and down with the sucker rod string. It is suitable for reducing the time of workover for deep well as it is not neccessary to pull all the tubing out of the well hole when checking the pump, which makes the operation quicker and the service life of tubing longer.The rod pump is in a state of free hanging, so it is suitable for deviated wells. According to seating mode ,the rod pump can be divided into two types: cup hold-down and mechanical hold-down. According to anchored position, the pump can be divided into top hold-down pumps and bottom hold-down pumps which include stationary barrel and traveling barrel types.

Technical Characteristics of Sucker Rod Pump

  1. High pumping efficiency and long inspection cycle.
  2. Compact structure and easy installation and maintenance.
  3. The pump barrel is made of high-quality special tubes, and the internal surface is hardened through chrome or nickel-phosphorus plating, resulting high strength, rigidness and corrosion-resistant performance.
  4. The surface of the plunger is subject to build-up welding with nickel-based alloy powder, thus the corrosion-resistant performance is enhanced.
  5. The valve ball and seat are made of high carbon chromium stainless steel, tungsten carbide, titanium carbide or other materials, thus its service life is extended.

Technical Specifications of Our Sucker Rod Pump

Type Code O.D (mm) PlungerLength (m) Barrel Length (m) Outer Tube O.D (mm) Sucker Rod O.D (mm) Extended Joint Length (m) ApplicableWell Conditions
Tubing Pump 20/25-106TH 28.5 0.6~2.1 3.3~ 9.5 60.3~ 73.0 15.9~ 19.1 0.6~0.9 Oil wells contains salt, Sulfur, carbon dioxide, Bacteria, Other corrosive media and a small amount of sands.
20/25-125TH 31.8 0.6~2.1 3.3~ 9.5 60.3~ 73.0 15.9~ 19.1 0.6~0.9
20/25-150TH 38.1 0.6~2.1 3.3~ 9.5 60.3~ 73.0 19.1 0.6~0.9
20/25-175TH 44.5 0.6~2.1 3.3~ 9.5 60.3~ 73.0 19.1 0.6~0.9
25-200TH 50.8 0.6~2.1 3.3~ 9.5 73.0 19.1 0.6~0.9
25-225TH 57.2 0.6~2.1 3.3~ 9.5 73.0 19.1 0.6~0.9
30-275TH 69.9 0.6~2.1 3.3~ 9.5 88.9 22.2 0.6~0.9
40-375TH 95.3 0.6~2.1 3.3~ 9.5 114.3 25.4 0.6~0.9
Sucker Rod Pump 20-125RH 31.8 0.6~2.1 3.3~ 9.5 60.3 19.1 0.6~0.9
25-150RH 38.1 0.6~2.1 3.3~ 9.5 73.0 19.1 0.6~0.9
25-175RH 44.5 0.6~2.1 3.3~ 9.5 73.0 19.1 0.6~0.9
25-200RH 50.8 0.6~2.1 3.3~ 9.5 73.0 19.1 0.6~0.9
30-225RH 57.2 0.6~2.1 3.3~ 9.5 88.9 19.1 0.6~0.9

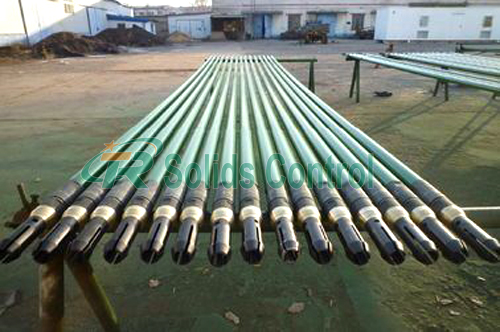

Plunger Type Carbon Steel Subsurface Sucker Rod Pump


Test & Inspection


According to API 5CT,API 5B or customer specified standards strict inspection and test system is used before shipping including appearance inspection, dimension inspection, chemical composition inspection, performance test, strength test, tensile test, hardness test, NDT, hydrostatic test, etc. The great products will be supplied and there is no worry about the quality.

Xi'An TianRui Petroleum Machinery Equipment Company Limited with perfect attitude, product and service, is going to make further development together with customers at home and abroad.

Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
