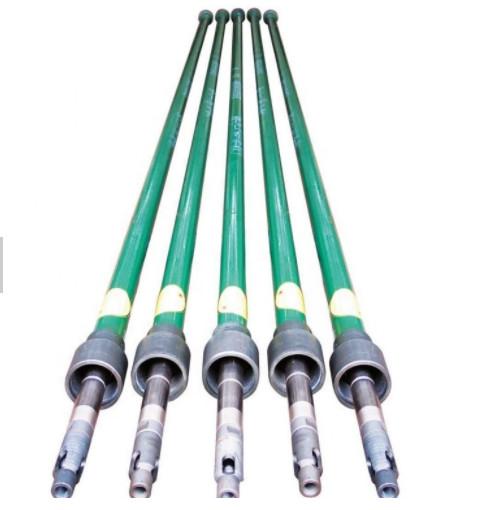

API 11AX 32mm Oil Well Subsurface Sucker Tubing Pump

  • 1
  • 2
  • 3

Brand Name : TR Solids Control

Model Number : TRCB

Certification : API 11AX, ISO Certificate

Place of Origin : Xi'an China

MOQ : 1 pc

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 50000 pcs per month

Delivery Time : Within 10 days after deposit

Packaging Details : Pallet or wooden case

Diameter : 28mm, 32mm,38mm,44mm,57mm

Material : Carbon Steel

Application : Energy & Mining

Color : Green, blue or red

Barrel Surface : Chrome Plate, Nickel-Phosphorous Plate

Warranty : 12 months

Contact Now

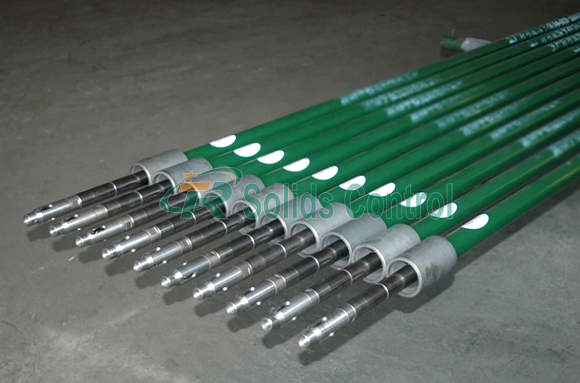

Green Color Oil Well Subsurface Sucker Rod Pump Tubing Pump

Product Overview

Rod pump is applicable to the deep well and inclined well, with low liquid lever and small oil output. Meanwhile, the wells should have sufficient liquid supply and the sand and wax is not serious. The pumping depth is not above 3100 meters. During working, the maintain can be done by lifting sucker rod, instead of tubing. This method can reduce labor and improve the efficiency.


Working Principle


In the upper stroke, the plunger is on the bottom of the tubing pump. Because the hydraulic pressure from the uper tubing, both up and traveling valves will close, When the plunger go up, the stationary valve open and oil will go through the pump, since the bottom pressure is higher than the uper pressure, then the fluid will be forced to go through the stationary valve and flow into the tubing.
In the down stroke,the traveling valve open and the presure drive the oil go into the plunger from the side holeof the extractor, then go into the tubing.


Technical Performance & Characteristics

  • The surface of the plunger is subject to build-up welding with nickel-based alloy powder, thus the corrosion-resistant performance is enhanced.
  • The pump barrel is made of high-quality special tubes, and the internal surface is hardened through chrome or nickel-phosphorus plating, resulting high strength, rigidness and corrosion-resistant performance.
  • The valve ball and seat are made of high carbon chromium stainless steel, tungsten carbide, titanium carbide or other materials, thus its service life is extended.
  • High pumping efficiency and long inspection cycle.
  • Compact structure and easy installation and maintenance.

Technical Data of Our Sucker Rod Pump

Type Code O.D (mm) PlungerLength (m) Barrel Length (m) Outer Tube O.D (mm) Sucker Rod O.D (mm) Extended Joint Length (m) ApplicableWell Conditions
Tubing Pump 20/25-106TH 28.5 0.6~2.1 3.3~ 9.5 60.3~ 73.0 15.9~ 19.1 0.6~0.9 Oil wells contains salt, Sulfur, carbon dioxide, Bacteria, Other corrosive media and a small amount of sands.
20/25-125TH 31.8 0.6~2.1 3.3~ 9.5 60.3~ 73.0 15.9~ 19.1 0.6~0.9
20/25-150TH 38.1 0.6~2.1 3.3~ 9.5 60.3~ 73.0 19.1 0.6~0.9
20/25-175TH 44.5 0.6~2.1 3.3~ 9.5 60.3~ 73.0 19.1 0.6~0.9
25-200TH 50.8 0.6~2.1 3.3~ 9.5 73.0 19.1 0.6~0.9
25-225TH 57.2 0.6~2.1 3.3~ 9.5 73.0 19.1 0.6~0.9
30-275TH 69.9 0.6~2.1 3.3~ 9.5 88.9 22.2 0.6~0.9
40-375TH 95.3 0.6~2.1 3.3~ 9.5 114.3 25.4 0.6~0.9
Sucker Rod Pump 20-125RH 31.8 0.6~2.1 3.3~ 9.5 60.3 19.1 0.6~0.9
25-150RH 38.1 0.6~2.1 3.3~ 9.5 73.0 19.1 0.6~0.9
25-175RH 44.5 0.6~2.1 3.3~ 9.5 73.0 19.1 0.6~0.9
25-200RH 50.8 0.6~2.1 3.3~ 9.5 73.0 19.1 0.6~0.9
30-225RH 57.2 0.6~2.1 3.3~ 9.5 88.9 19.1 0.6~0.9

API 11AX 32mm Oil Well Subsurface Sucker Tubing Pump

Xi'An TianRui Petroleum Machinery Equipment Company Limited is the first-grade network unit of Sinopec. Through years of efforts, it has gradually developed into a comprehensive company integrating the R&D, manufacturing of solid control equipment, oil drilling and workover equipment, oilfield special equipment, oil extraction equipment and well head and downhole tools, and the providing of petroleum engineering design and technical services.

We are committed to build the company into an international first-class petroleum equipment supplier and warmly welcome business partners at home and abroad for joint operation in various fields to realize mutual benefits and common development.

Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
