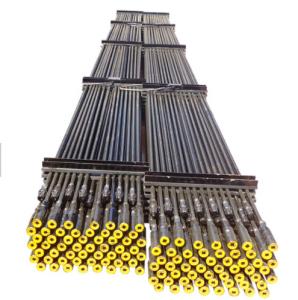

Oil Extraction API 11B Metal Spray Sucker Polished Rod

  • 1
  • 2
  • 3

Brand Name : TR Solids Control

Model Number : TRCYG

Certification : API 11 B Certificate, ISO Certificate

Place of Origin : Xi'an China

MOQ : 1 pc

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 100000 pcs per month

Delivery Time : Within 15 days after deposit

Packaging Details : Pallet or wooden case

Length : 7518mm, 9042mm

Use : Well Drilling, Energy & Mining

Size : 5/8"to 1-1/8"

Material : Alloy steel

Grade : C, D, K, KD, H

Color : Black or customized

Contact Now

API 11B Metal Spray Sucker Polished Rod for Oil Extraction

Product Overview

The manufacturing process are used the advanced technologies globally. High-strength and super high strength sucker rod are our main products, in accordance with the standards SY/TSO29, SYTS6272& API Spec 11B. We also produce the specially sucker rod and pony sucker rod ,to filling with our customers’ requirements.

Before the production, the spectrometer are used for the material analysis . The magnetic detector are used to detect the pipes one by one. The Infrared thermometer are applied to monitor the temperature. Others high technologies are also used in the production to ensure the quality.

We can supply the folllowing kind of Polished rod:
Normal Type
One end diameter enlarged polished rod
high-strength, long stroke, corrosion resistant polished rod-
I. Using High Strength Steel
II. Surface Electroplating
III. Surface Spray Metal.

Main Benefits of Oilfield Sucker Rod

  • Grade HL and HY sucker rods are super-high strength sucker rod, having the same size and main parameter as grade D sucker rod, but their strength is capable to reach 966~1195Mpa. Grade HL, HY sucker rods are suitable for the deep oil-well or big-pump capacity oil-well.
  • Grade D sucker rod is made from fine alloy steel, featured by high strength, better plasticity and long service life after heat treatment. This product is suitable for no-corrosion or light-corrosion environment oil-well widely.
  • Grade C sucker rod is made from fine carbon steel. It is featured by mid-strength, good plasticity, toughness, corrosion resistance. It is suitable for sour medium environment where it is not susceptible to sulphuric stress cracking.
  • And grade K, KD and KH sucker rod are made from fine Cr-Ni-Mo alloy steel containing different amount of Ni. They possess more powerful anti-corrosion function. The products are suitable for strong corrosion oil-well, with depth of shallow, middle and deep respectively.

Technical Information of Our Oilfield Sucker Rod

Nominal Size 1-1/8 (in) 1-1/4 (in) 1-1/2 (in)
in. mm in. mm in. mm
Outside Diameter Dimension 1.125 28.58 1.25 31.75 1.50 38.10
Tolerances +0.005
-0.010		 +0.13
-0.25		 +0.005
-0.010		 +0.13
-0.25		 +0.005
-0.010		 +0.13
-0.25
Nominal Diameterof Pin-thread Dimension for referance 0.938 23.83 1.188 30.18 1.375 34.93
1.063 27.00
Note:sizes of sucker rods with which used Nominal Dimension (for referance) 5/8 7/8 1
3/4
Note:Standard lengths Dimension

ft

8,11,16,

22,

26,30,36,

40

m

2.4,3.4,

4.9,

6.7,7.9,

9.1,

11.0,12.2

ft

8,11,16,

22,

26,30,36,

40

m

2.4,3.4,

4.9,

6.7,7.9,

9.1,

11.0,12.2

ft

8,11,16,

22,

26,30,36,

40

m

2.4,3.4,

4.9,

6.7,7.9,

9.1,

11.0,12.2

Oil Extraction API 11B Metal Spray Sucker Polished Rod

We have a rich history, spanning more than 10 years in the mining and drilling industry. This long record of experience has led us to become the China leader and expert we are today. With one manufacturing location, some of the most advanced drilling technology on the market, we continue to be innovators of the industry. Until now our products are popular in United States , Australia, England, France, Japan, Brazil, India, Russia and many other countries & regions.

Xi'An TianRui Petroleum Machinery Equipment Company Limited is an ISO-9001, ISO-14001, OHSAS-18001 certified company and has all the quality systems in place for design, planning, manufacturing and quality monitoring & traceability to ensure that our products match the highest quality & reliability Standards similar to any International major in this field.

Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
