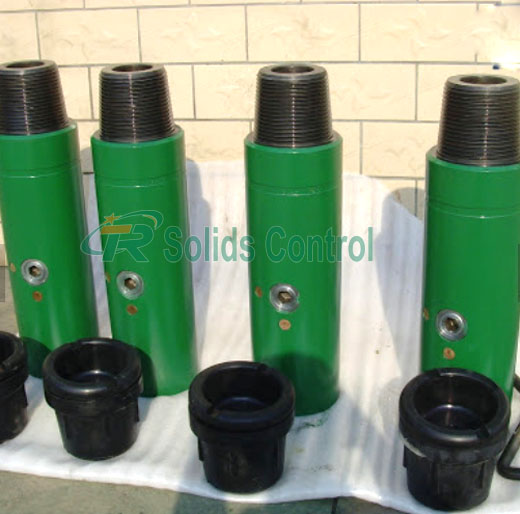

Oilfield IBOP For Top Drive With Upper and Lower Safety Valves
Product Overview
IBOP for Top Drive used for top drive. It includes Upper IBOP for Top Drive and Lower IBOP for Top Drive. They are used for top drive drilling system with joined one by one. It is hydraulically operated and manually operated control valves in top drive circulating system, and special use for drill stem inside blowout emergency. It has a pressure rating of 10,000psi or 15,000psi respectively at the factory. The bore of the valve body and all internal parts are special treated to prevent damage from corrosion and have a long life service.
It's intended for using as part of the upper power drive system for prompt overlap and pressurization of the drilling instrument tube channel in drilling the oil and gas wells, and also in maintenance and emergency works. (Upper valve, mechanized control).
What We Could Supply?
World famous brands of Top Drive including Varco, Canrig, NOV, BPM, JH, etc.
Top Drive Parts including Gooseneck, saver sub, IBOP, gear, stuffing box, washpipe, etc.
Tianrui can supply China made interchangeable parts for above mentioned Top Drive Parts.
If you need any related parts or tools, freely to ask us.
Technical Specifications of Our Upper & Lower IBOP
| Type | O.D. | I.D. | Connection(API) | OAL |
| DXS187 Upper IBOP | 187 7-23/64) | 77.8 (3-1/16) | 6-5/8REG | 572(22-1/2) |
| DSS187 Lower IBOP | 523(20-19/32) |
| DSS197 Upper IBOP | 197 7-3/4) | 77.8 (3-1/16) | 6-5/8REG | 572(22-1/2) |
| DXS197 Lower IBOP | 523(20-19/32) |
| DSS216 Upper IBOP | 216 8-1/2) | 77.8 (3-1/16) | 6-5/8REG | 600(25-5/8) |
| DXS216 Lower IBOP | 512(20-5/32) |
| DSS254 Upper IBOP | 254 (10) | 102 (4) | 8-5/8REG | |
Xi'An TianRui Petroleum Machinery Equipment Company Limited is making great efforts in technology innovation, market innovation and management innovation to constantly enhance the comprehensive strength of company, in order to build it as one of the national R&D and production bases for petroleum tools. In addition, we will endeavor to provide better products and more excellent services and improve the strength of enterprise, so as to make greater contribution to the global petroleum tool induatry.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Product Tags:
|
|

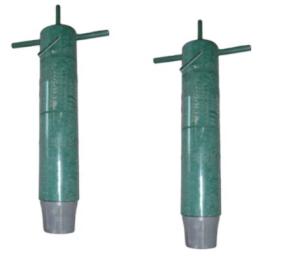

Carbon Steel REG Upper Lower Safety Valves Oilfield IBOP Images
|
