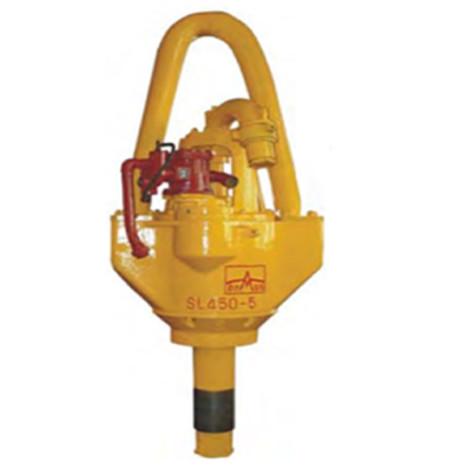

API 8C Oilfield XSL450 Drilling Swivel with Spinner
Product Overview
Drilling Swivel of Type SL is necessary hoisting equipment for hanging drill pipes in oil well drilling and repairing. They are designed and manufactured according to API Spec 8A/8C Specification of drilling. (The price here is for your reference. If there is interest in the product, please feel free to contact.)
Power Swivel is the device installing on the of servicing rig, to provide rotating power. Except the use for such workover jobs as casing milling, milling, drilling cement plug and bridge plug and fishing, it is also used for sidetracking drilling, drilling open hole and coring. The product is designed and manufactured according to API 8C specifications.
Key Specialities of Our Oilfield Swivel
- Low temperature resistant Swivels for use in alpine regions can also be provided according to customer requirements.
- Optional 3LP and 4LP inner and outer spiral water hose joint threads.
- Ordinary Swivels are mainly composed of lifting ring, gooseneck tube, packing device, shell, central tube main bearing and joints. The lower joint is connected to the kelly rod through the standard thread, and the upper lifting ring is hooked. The neck tube and the hose can be connected by a standard threaded joint union as required.
- The flushing pipe packing assembly adopts a box structure, which can be quickly replaced on the drill floor without removing the hose and gooseneck.
- The Swive lcomplies with the American Petroleum Institute APLSpec 8c PSL1 product specification.
Technical Specifications of Our Oilfield Swivel
| MODEL | SL70 | SL110 | SL135 | SL160 | SL225 | XSL225 | XSL450 |
| Max. static load (Ibf) | 151740 | 25290 | 303492 | 35969 | 505820 | 505820 | 1011640 |
| Working load of main bearing (Ibf) | 67440 | 101164 | 224808 | 269770 | 337213 | 377213 | 562022 |
| Gooseneck pipe thread | 2 3/8" TBG | 4 1/2" NPT | 4 1/2" TBG | 4 1/2" TBG | 4 1/2" TBG | 4" NPT | 4"NPT |
| Bottom thread of central pipe joint | 2 7/8" UP DP | 4 1/2" REG LH | 5 1/2" REG LH | 5 1/2" REG LH | 6 5/8 REG LH | 6 5/8 REG LH | 6 5/8"REG LH |
| Max. working pressure (psi) | 2143 | 3000 | 5000 | 5000 | 5000 | 5000 | 5000 |
| Opening diameter of central pipe (in) | 1.96 | 2.5 | 2.99 | 2.99 | 2.99 | 2.99 | 2.99 |
| Overall dimension (ft) | 5.57×1.49×0.98 | 5.53×0.93×1.67 | 7.41×2.21×2.44 | 7.87×2.33×2.47 | 8.53×2.56×2.60 | 9.45x3.37x3.49 | 9.89×3.59×3.49 |
| Mass (Ib) | 606 | 741 | 1711 | 2176 | 2925 | 5666 | 6746 |
Xi'an TianRui Petroleum Machinery Equipment Company Limited takes root in China and has very good cooperation relationship with most of famous factories, plus strong technical support and good advantage in language. Therefore, we are quite capable to help the customer to overcome this challenge.
With “Professional & Efficient, Customer Focus, Win-win Cooperation” as the operation principle, we believe that we will become your best cooperative partner in China.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
