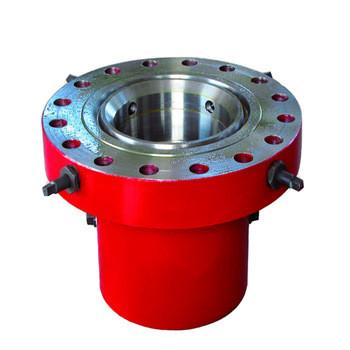

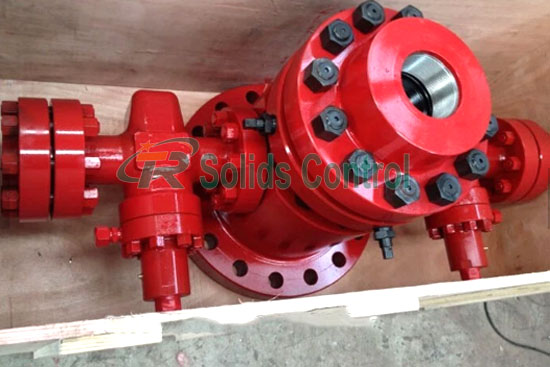

ANSI4130 Wellhead Casing / Tubing Head for Oil and Gas
Product Introduction
In oil drilling, a casing head is a simple metal flange welded or screwed onto the top of the conductor pipe (also known as drive-pipe) or the casing and forms part of the wellhead system for the well.
The casing head is classified into two types, including the bottom drive head and the middle drive head spool. It is a key component connecting the casing pipe and various wellhead devices.
We manufacture standard structural casing head with casing hanger installed in the body. Casing hanger can be chosen as per different casing program and well condictions.top flange of casing head can be API 6B or 6BX.
Main Features of Our Wellhead Casing Head
- Casing head house 's side outflet connection has thread type and flanger type.
- Same model mandrel type and slip type casing hanger can exchangeable.
- Casing head house design is with 45* landing shoulder.
- Based on casing head's procedure design different models' casing hanger.
- Design,manufacture ,testing and material choosing are followed by API 6A standard.
- Casing head and casing pipe's connection way has thread type ,welded type,and slip type.
- Sealing type of caing hanger has combined rubber sealing and combined metal sealing type.
Technical Data of TR Wellhead Casing Head
| Casing Program | 20"×133/8" ×95/8" ×7" or 51/2" |
| Flanged Outlet | PFF35/80:R35 |
| PFF70/65:BX153 |
| Load Capacity | Mixmum 5000KN |
| Hanger Specification | 4",41/2",5",51/2",7" |
| Working Pressure | 35MPa~70MPa |
| Performance Requirement Grade | PR1 |
| Product Specification Grade | PSL1-3 |
| Temperature | P·U(-29℃~121℃) |
| Material Class | AA~FF |
Xi'An TianRui Petroleum Machinery Equipment Company was established in 2010 and located in Xi'an city of China. We have the specialized technicians, senior engineers and professional marketing team. The company is committed to develop, manufacture and supply a variety array of oilfield equipments, the main products include : Petroleum equipments & tools such as solid control equipment, drilling equipments, production equipments, tubular goods, wellhead equipments, downhole equipments, well control equipments, cementing tools etc.
We have established a complete quality control system, all products& equipments manufactured as per international standard and API standard.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
