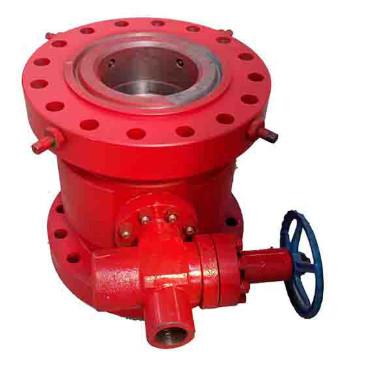

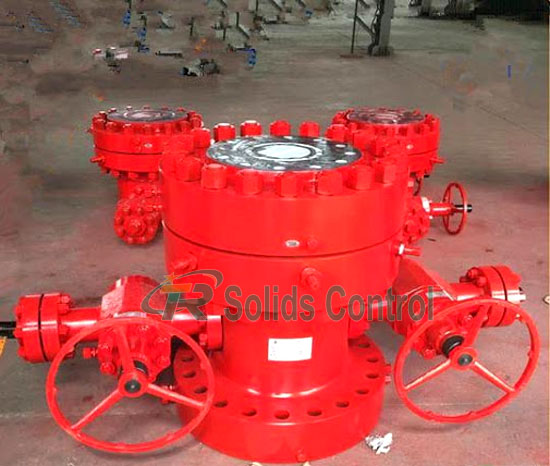

13 5/8" API 6A 5000 PSI Wellhead Equipment Casing Head Assembly
Product Descrption
Casing heads are indispensable components used for connecting casing to wellhead assembly, which can support intermediate string and production string, seal the annular space between the casings. Casing head also can be used as a crossover connection for installation of BOP, tubing head, christmas tree and other wellhead components. Two side outlets on the casing head can be used for cement feeding, well sink monitoring, balance fluid injection and other operations.
Casing Head provided by our company are normally furnished with threaded outlets and studded outlets and also can be manufactured by request. Bottom connections can be furnished threaded or slip-on for welding.
Structural Benefits of Our Wellhead Casing Head
- Outlet connection can be thread, bolted flange.
- Top connection are API 6A flanged, and the flanges are provided with locking bolts.
- Structural type of the matched casing hanger: slip and mandrel.
- Bottom connection can be threaded, welded or slip.
- Optional integral double FS-seal, P-seal and Metal-to-Metal seal bottom preparation for HTHP applications.
- Casing hanger has straight type seat bore 45degree cone of hanging shoulders with strong loading bolts.
Main Parameters of TR Wellhead Casing Head
| Casing Program | 20"×133/8" ×95/8" ×7" or 51/2" |
| Flanged Outlet | PFF35/80:R35 |
| PFF70/65:BX153 |
| Load Capacity | Mixmum 5000KN |
| Hanger Specification | 4",41/2",5",51/2",7" |
| Working Pressure | 35MPa~70MPa |
| Performance Requirement Grade | PR1 |
| Product Specification Grade | PSL1-3 |
| Temperature | P·U(-29℃~121℃) |
| Material Class | AA~FF |
What's the order procedure?
First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pr-epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15 days if we don't have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
Xi'an TianRui Petroleum Machinery Equipment Company Limited was established in 2010, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
