API-6A Wellhead Equipment Casing Ppool Casing Hanger Casing Head
Product Descrption

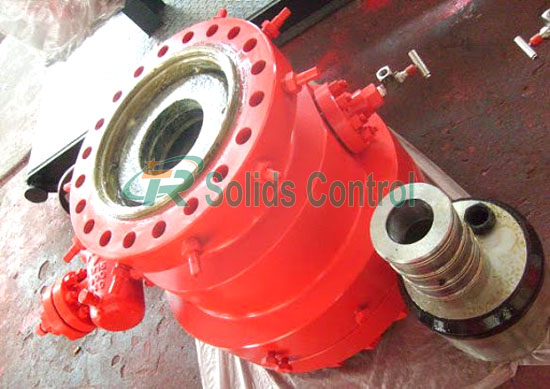

Casing head is a component connecting the casing and various wellhead devices. To support the gravity of the technical casing and reservoir casing, to seal the annular space between each casing, to provide a transition connection for the installation of upper wellhead devices such as bop, tubing head and tree, and through the two side openings in the casing head body, to perform the cementing, monitoring well sinking, and injection balancing operations.
We manufacture standard structural casing head with casing hanger installed in the body. Casing hanger can be chosen as per different casing program and well condictions.top flange of casing head can be API 6B or 6BX.
Bottom connection can be CSG,BTC,SOW or slip-lock. We can also provide landing plate as per request.side outlets can be threaded or studded.
Product Application
- Our Casing Head can be used in onshore and offshore environments, for general and sour service and in conventional or specialty wellhead systems.
- PSL 1 to 3G certified
- PR-1 certified
- Available in DD-NL, EE-NL, FF-NL and HH-NL trims
- Available in nominal flange sizes 11″ to 13-5/8″
- Available with or without lockscrews
- Optional landing base plate assemble for 20″ to 30″ conductor pipe
Manufacturing Equipment
- CNC lathe
- Vertical CNC machining center
- Frame type CNC machining center
Technical Specifications of TR Wellhead Casing Head
| Casing Program | 20"×133/8" ×95/8" ×7" or 51/2" |
| Flanged Outlet | PFF35/80:R35 |
| PFF70/65:BX153 |
| Load Capacity | Mixmum 5000KN |
| Hanger Specification | 4",41/2",5",51/2",7" |
| Working Pressure | 35MPa~70MPa |
| Performance Requirement Grade | PR1 |
| Product Specification Grade | PSL1-3 |
| Temperature | P·U(-29℃~121℃) |
| Material Class | AA~FF |
