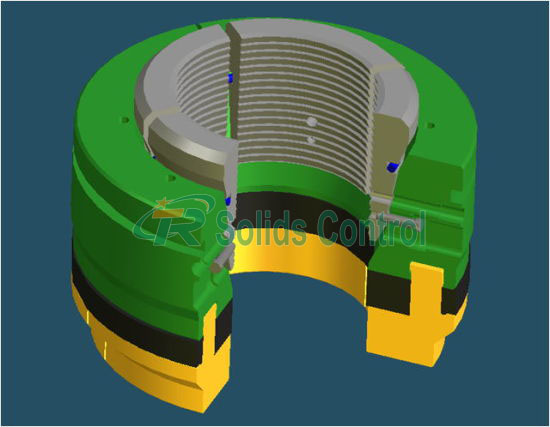

10000 PSI WE Type Casing Hanger for Oilfield Wellhead
Product Descrption
Casing hanger is inside the casing head and used for supporting the casing loads, and sealing the annular space between casing and tubing. Both slip type and mandrel type casing hangers are supplied by us.
Slip casing hanger is made of low alloy steel with high bearing capability and anti-H2S and access to on-site welding. The types of connecting with casing include welding, threading, slipping and BT sealing. It is mainly used to fix the drilling Wellhead, connect down hole casing string, seal and control annular pressure. Either API 6B or API 6BX flange is used on the top of the casing head. Its side outlet can be customized to line pipe thread or section threaded.
Specification
- Wellhead Size: 7 1/16”~ 21 1/4”
- Wellhead Pressure: 2000PSI~20000PSI
- Temp Range: K,L,N,P,S,T,U,V,X,Y.
- Material Class: AA,BB,CC,DD,EE,FF,HH. 0.5, NL.
- Wellhead products Class: PSL1~PSL3G.
- Wellhead products Performance Class: PR1, PR2.
Key Advantages of Our Wellhead Casing Hanger
- W type hanger is casing self-respect strengthen sealed structure;
- Slip type hanger type: G type, W type, WD type, WE type, etc.
- Casing hanger points thread type (core shaft), slip type two kinds big,
- WD type suspension used for connecting casing head and surface casing, it through the external force that slip tooth hold casing;
- WE type and G type manual strengthen seal structure.
Main Parameters of TR Wellhead Casing Hanger
Rated operating pressure
psi(MPa) | Nominal bore diameter
in(mm) | Bypass bore diameter
in(mm) | Outer diameter of the casing for the hangerin(mm) |
| 2000(13.8) | 11"~21 1/4"
(280~540) | 1 13/16"~4 1/16"
(46~103) | 5 1/2"~20"
(139.7~508) |
| 3000(20.7) | 11"~21 1/4"
(280~540) | 1 13/16"~4 1/16"
(46~103) | 5 1/2"~20"
(139.7~508) |
| 5000(34.5) | 11"~21 1/4"
(280~540) | 1 13/16"~4 1/16"
(46~103) | 5 1/2"~20"
(139.7~508) |
| 10000(69.0) | 11"~21 1/4"
(280~540) | 1 13/16"~4 1/16"
(46~103) | 5 1/2"~20"
(139.7~508) |
| 15000(103.5) | 11"~21 1/4"
(280~540) | 1 13/16"~4 1/16"
(46~103) | 5 1/2"~20"
(139.7~508) |
| 20000(138.0) | 11"~21 1/4"
(280~540) | 1 13/16"~4 1/16"
(46~103) | 5 1/2"~20"
(139.7~508) |
With profession engineers we also offer the R&D service to the clients who have special requirements in the oilfield drilling operation and production operation. The wellhead equipment we manufacture and supply include casing head, tubing head, casing spool, tubing spool, Gate valve, Choke valve, Check valve, X-mas tree, VR plug, Tubing hanger, casing hanger, Running tool, Wear bushing, spacer spool, flange adapter, union flange, Hammer union, Elbow, swivel joint, block cross, Block Tee, companion flange, instrument flange, weldneck flange, FC gate, FC seat, FC stem, API Clamp, API Clamp Hub etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
