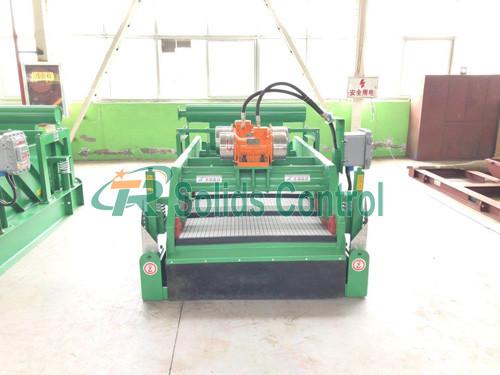

API Standard Oilfield Solid Control Drilling Shale Shaker
Product Introduction
Shale Shaker is the most important in drilling mud system and decides performance of the whole solids control system, it is the first phase solids control equipment in oil well drilling system.Our company can provide double shaker and triplicate shaker as clients' request, and provide full series of linear motion shale shakers.
Having absorbed the latest achievements in screening machine at home and abroad and integrated the strong points of circle and rectilinear vibration, the shale shaker greatly raises the speed of carrying drill cuttings and boost through–screen quantity of drilling liquid, thus avoiding pasting on the screen. The shale shaker takes double explosion-proof vibration motors as vibrating source, and forms rectilinear movement by the action of reversal rotation vibration motors. It is especially applicable in the working conditions with stratigraphic fluctuation. Its advantages become more apparent as drilling liquid is of much higher viscosity.
Design Characterstics of our BEM shale shaker:
- Overall heat treatment, long time work.
- Schneider or Siemens electrical components.
- Martin or OLI vibration motor.
- Vibration strength is 7.5G, adjustable.
- Hopper type feed mode reduces feed speed.
- Screen box angle is mechanical and adjustable.
- Wedge-type compaction device facilitates fast replacement of screen.
Technical Parameters of TR Drilling Shale Shaker
| Model | TRPS703 | TRPS585-4 | TRZS703 | TRZS585 |
| Vibration Motion | Balanced Elliptical Motion | Linear Motion |
| Treatment Capacity | 130m³/h | 140m³/h | 120m³/h | 130m³/h |
| Motor Power | 1.94+1.0kw | 1.94+1.0kw | 1.5KW×2 | 1.72KW×2 |
| Screen Specs. | (700×1250mm)×3 | (585×1165mm)×4 | (700×1250mm)×3 | (585×1165mm)×4 |
| Screen Area | 2.6m² | 2.7m² | 2.6m² | 2.7m² |
| Vibration Strength | ≤7.1G | ≤7.1G | ≤7.1G | ≤7.1G |
| Double Amplitude | 7mm | 7mm | 6mm | 6mm |
| Deck Adjustment | -1°～+5° | -1°～+5° | -1°～+5° | -1°～+5° |
| Ex Standard | ExdIIBt4 / IECEX / A-TEX |
| Weight | 1630kg | 1618kg | 1620kg | 1600kg |
| Dimension | 2770×1785×1690mm | 2966×1600×1280mm | 2770×1785×1690mm | 2966×1600×1280mm |
| Remark | Above data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3. |
TR Solids Control is making great efforts in technology innovation,market innovation and management innovation to constantly enhance the comprehensive strength of company,in order to build it as one of the national R&D and production bases for petroleum tools. In addition, we will endeavor to provide better products and more excellent services and improve the strength of enterprise, so as to make greater contribution to the global petroleum tool induatry.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
