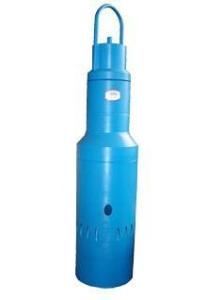

Oilfield Downhole Tools Reverse Circulation Fishing Magnet
Product Overview
The reverse circulation fishing magnet is used for fishing of small fallen objects in the down hole of petroleurn and geology exploration.During the operation, it can performa local reverse circulation in the bottom, the fish will be rushed into the basket, it is equipped with permanent magnet to attract small objects such as teeth wheel, palm, tong teeth and tool and other small objects.
Our Fishing Magnets are used to retrieve all types of objects having magnetic attraction, such as bit cones, bearings, slips, etc., and may be run on wire lines or on pipe. These Fishing Magnets are particularly valuable for use prior to diamond coring. In a single trip, Fishing Magnet will completely clean the hole of these damaging junk items, insuring good performance and safeguarding the valuable bit.
Design Characterstics of TR Downhole Fishing Magnet:
With some of advantages such as simply structure, easy to operate, reliable performance, small size and light weight, it is a equipped with permanent magnet iron which can attract small objects such as teeth wheel, palm, tong teeth and tool so that small objects in down hole are fished and the well bottom is cleaned up.
Technical Parameters of TR Oilfield Fishing Magnet
| type | (mm) | Thread Conn | Attracted Weight (kg/cm2) | Temperature in well | Hole Size (mm) |
| CLF89 | 89 | NC26 | 9.8 | 210 | 95-110 |
| CLF100 | 100 | NC26 | 9.8 | 210 | 110-135 |
| CLF125 | 125 | NC38 | 9.8 | 210 | 135-165 |
| CLF140 | 140 | NC38 | 8.5 | 210 | 150-175 |
| CLF146 | 146 | NC38 | 8.5 | 210 | 160-185 |
| CLF150 | 150 | NC38 | 8.5 | 210 | 160-185 |
| CLF175 | 175 | NC50 | 7.9 | 210 | 185-210 |
| CLF178 | 178 | NC50 | 7.8 | 210 | 185-210 |
| CLF190 | 190 | NC50 | 7.8 | 210 | 200-225 |
| CLF200 | 200 | NC50 | 7.6 | 210 | 210-235 |
| CLF203 | 203 | NC50 | 7.6 | 210 | 215-240 |
| CLF225 | 225 | 6 5/8REG | 7.5 | 210 | 235-270 |
| CLF254 | 254 | 6 5/8REG | 7.0 | 210 | 265-311 |
| CLF265 | 265 | 6 5/8REG | 6.9 | 210 | 275-330 |
| CLF292 | 292 | 6 5/8REG | 6.9 | 210 | 300-442 |
| CLF317 | 317 | 7 5/8REG | 6.9 | 210 | 340-375 |
| CLF356 | 356 | 7 5/8REG | 6.9 | 210 | 444.5 |
Our Service
1. We possess a 24 hr response system to provide convenient, fast, and effective pre-sale, during sale and after-sale service.
2. Our promise: Any equipment sold by TR Solids Control at any place in the world, we will provide after-sale service promptly and efficiently. Any equipment component damaged by manufacturing defect or quality problem during the warranty period, we will bear the direct cost of the damaged parts.
3. Warranty period: 18 months from the day that the unit leaves factory or 12 months from the date that the unit is put into use (choose the earliest one which comes to an end as the calculation standard).
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
