API Mechanical 460 KN Downhole Hydraulic Drilling Jar

  • 1
  • 2
  • 3

Brand Name : TR Solids Control

Model Number : TRCZ Series

Certification : API & ISO Certificate

Place of Origin : Xi'an China

MOQ : 1 pc

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 2000 Pcs Per Month

Delivery Time : Within 20 days after deposit

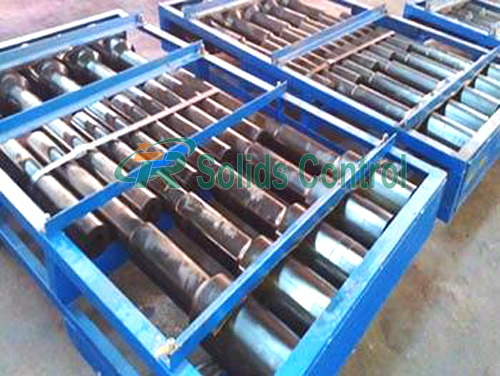

Packaging Details : Pallet or wooden case

OD : 4-3/4"-8"

ID : 2"-2-13/16"

Connection : NC 38, NC 50, 6-5/8 REG

Max. Downward Jarring Force : 230-460 KN

OAL : 6356-7265 mm

Material : Carbon Steel

Processing Type : Forging

Application : Well Drilling Fishing Tool

Contact Now

Oil and Gas API Mechanical and Hydraulic Drilling Jar , Super Fishing Jar

Product Introduction

Hydraulic jar (up / down) designed to use with accelerator and flow sub form a coiled tubing short heavy string. The Jar delay device let the energy stored in the stretched and elongated string accelerator, when the energy released will have a great impact force to generate shock effect and loose card tool stuck.

ZJS mechanical upper hitter
Overview and purpose
ZJS type mechanical upper hitter is an ideal tool for workover team to deal with sticking accidents. It is installed close to the fish in the workover and fishing operation, which enables the tool to directly carry out a powerful upward shock to the fish. The magnitude of shock force is adjusted in advance by adjusting mechanism on the ground. The mechanical structure of the tool is adopted, and its performance is not affected by high well temperature and secret failure.

Design Features of TR Downhole Fishing Jar:

  • Continuous coiled tubing operation.
  • Tool string is short, small diameter, simple structure, reliable, less wear in downhole, low-cost tools.
  • The same tool change the components and the direction of the outer cylinder to realize up or down jar.
  • Two tools can be connected in series to achieve simultaneously on up or down jar.

Technical Parameters of TR Oilfield Drilling Jar

Type
mm (in)
ZJS108
(ZJS42)
ZJS114
(ZJS44)
ZJS121
(ZJS46)
ZJS146
(ZJS56)
ZJS159
(ZJS62)
ZJS178
(ZJS70)
ZJS203
(ZJS80)
O.D.(mm) 108 114 121 146 159 178 203
I.D(mm) 32 38 38 51 57 57 70
Overall length of pull down (mm) 4200 3650 3500 4000 4700 3950 3970
stroke(mm) 330 210 230 330 330 310 320
Thread NC31 NC31 NC38 NC40 NC50 NC50 6 5/8"REG
Max.tensile load downhole (KN) 700 800 900 1200 1500 1800 2200
Sealing pressure Mpa 20 20 20 20 20 20 20
Pull down Full stroke force (tf) 32-38 25-30 30-35 35-40 62-67 75-85 90-100


API Mechanical 460 KN Downhole Hydraulic Drilling Jar

Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level manufacturer and supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.

Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
