ZYQ 1200 Drilling Mud Gas Separator For Liquid And Gas Separation , Poor Boy Degasser
Introduction
TRZYQ series mud gas separator is the special equipment to treat the gas cut drilling mud. The gas cut drilling mud will cause density and viscosity of drilling mud greatly deviate from normal parameter, it can not meet the requirement of drilling will cause of kick and blowout accident occurred. Mud gas separator combined with flare ignition device can process the gas-cut drilling mud effectively and timely.
Mud Gas Separator serves as an ideal device if well blowout or kick is encountered or if operators apply under-balanced mud column in drilling processes. Our Mud/Gas Separator is primarily used to remove the enormous free gas from drilling fluids, including poisonous gases like H2S. Field data shows it is a fairly reliable and vital safety equipment.
Application
Our Mud Gas Separator is mainly used to get rid of enormous free gas from drilling fluids, including poisonous gases like H2S. Currently it is widely used in oil & gas drilling, Drilling Waste Management, city bored piling, Oil Mud Seperation, Oil Sludge Dewatering Systems, trenchless HDD, Coal Bed Gas Solids Control System, mining, Water Drilling, environment protection etc.
Advantages of TRZYQ Series Mud Gas Separator
- Efficient degassing performance.
- Reduces Hazardous Gas Threat.
- Fail-safe gas delivery can be controlled by a back-pressure manifold valve in the flare line.
- Skid-Mounted and Trailer Transportable. Simplifying transport, spotting and installation.
- Separates free gas accumulations especially toxic gases from drilling mud system.
- Versatile Configuration. Flow line adjustments can be raised or lowered to minimize piping.
Technical Sheet of TRZYQ Series Mud Gas Separator
| Model | TRZYQ800 | TRZYQ1000 | TRZYQ1200 |
| Capacity | 180 m³/h | 240 m³/h | 320 m³/h |
| Main Body Diameter | 800mm | 1000mm | 1200mm |
| Inlet Pipe | DN100mm | DN125mm | DN125mm |
| Output Pipe | DN150mm | DN200mm | DN250mm |
| Gas Discharge Pipe | DN200mm | DN200mm | DN200mm |
| Weight | 1750kg | 2235kg | 2600kg |
| Dimension | 1900*1900*5700mm | 2000*2000*5860mm | 2200*2200*6634mm |
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
Product Tags:
|
|

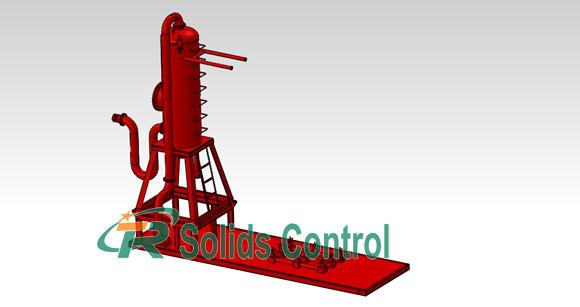

TRZYQ1200 Vertical Gas Separator 1200mm Main Body Diameter Heavy Duty Images
|
