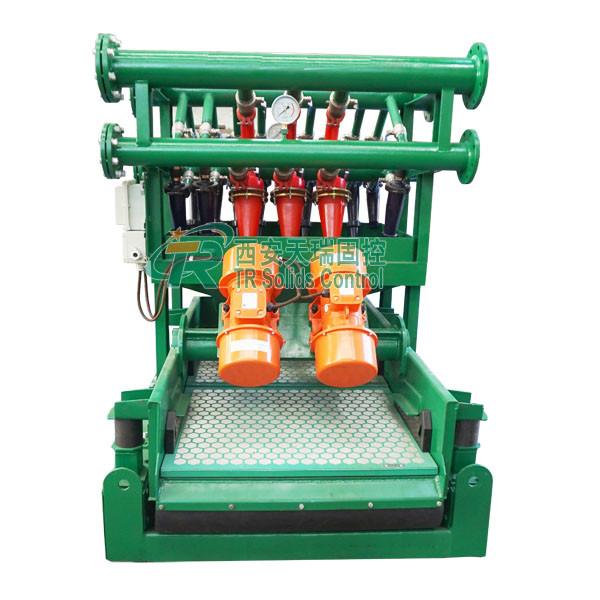

High G Vibration Strength Mud Cleaning Systems with 12nos Desilter
Product Introduction
Drilling mud cleaner is also called Desander and Desilter assembly, which is the combination of desander, desilter and an underflow screen. Namely, mud cleaners consists of a two-stage separation process using a combination of hydrocyclones mounted over a shale shaker to operate as a single unit. Designed to handle the entire circulating volume, Drilling cuttings cleaners are effective on both weighted and unweighted drilling-fluid systems in removing and drying solids while retaining the expensive liquid.
The hydrocyclones(desanders and desilters) make the primary separation with underflow directed onto the shaker’s vibrating screen. Used correctly, the drilling mud cleaner lower both drilling fluid and disposal costs. In oilfield solids control process, drilling mud cleaners are very efficient for oil gas well drilling mud purification system. TRQJ Series Mud Cleaners are one of the important equipments for solids liqiud separation system.
Advantages of TRQJ Series Mud Cleaner
- Mechanical Deck is adjustable during operation, reliable performance.
- Compact design with small footprint, with top feed and weir feed two option.
- Desander cones can be installed between one and three 10" desander cones, each cone can process 500 GPM and makes a separation between 45 and 75 μm.
- Desilter cones can be installed between eight and twenty 4" or 5" desilter cones, each cone can process 80 GPM, and makes a separation between 15 and 45 μm.
- Polyurethane ( PU ) material, high-chromium cast iron or ceramic to make desander and desilter cones.
- Hook-strip shaker screens for fast screens changing with screens.
Technical Data of TRQJ Series Mud Cleaner
| Model | TRQJ200×1S-100×4N | TRQJ200×2S-100×8N | TRQJ250×2S-100×12N | TRQJ25×3S-100×20N |
| Capacity | 60m³/h | 120m³/h | 240m³/h | 320m³/h |
| Desander Cyclone Specs | 8" | 10" |
| Desander Cyclone Qty | 1 | 2 | 2 | 3 |
| Desilter Cyclone Specs | 4" |
| Desilter Cyclone Qty | 4 | 8 | 12 | 20 |
| Working Pressure | 0.25～0.4mpa |
| Inlet Size | DN125mm | DN150mm | DN150mm | DN200mm |
| Outlet Size | DN150mm | DN200mm | DN200mm | DN250mm |
| Separation Point | 15μm～44μm |
| Bottom Shaker | TRZS60 | TRZS752 | TRZS752 | TRZS703 |
| Dimension | 1.51×1.16×2.0m | 1.835×1.23×1.81m | 1.835×1.23×1.81m | 2.42×2.15×2.15m |
| Weight | 600kg | 980kg | 1250kg | 2350 kg |
| Remark | All mud cleaners could be customized without bottom shaker. |
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
Product Tags:
|
|

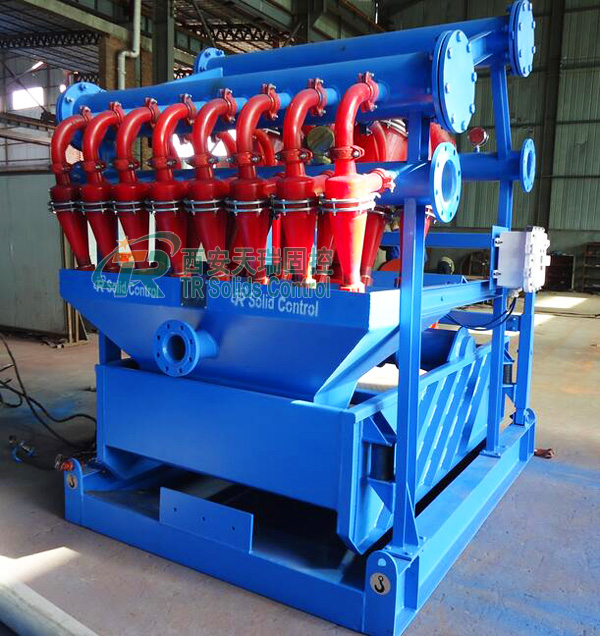

High G Vibration Strength Mud Cleaning Systems with 12nos Desilter Images
|
